Lawler’s NEW MINI Manifold Pre-Piped Recirculation Systems offer engineers a pre-piped solution with a small footprint – just a few inches larger than a standard valve in a cabinet. Lawler’s patented 800 Series High-Low Master Controllers increase the performance and cost effectiveness of this mini pre-piped system by controlling both high and low flows while providing Three-Way Protection™.

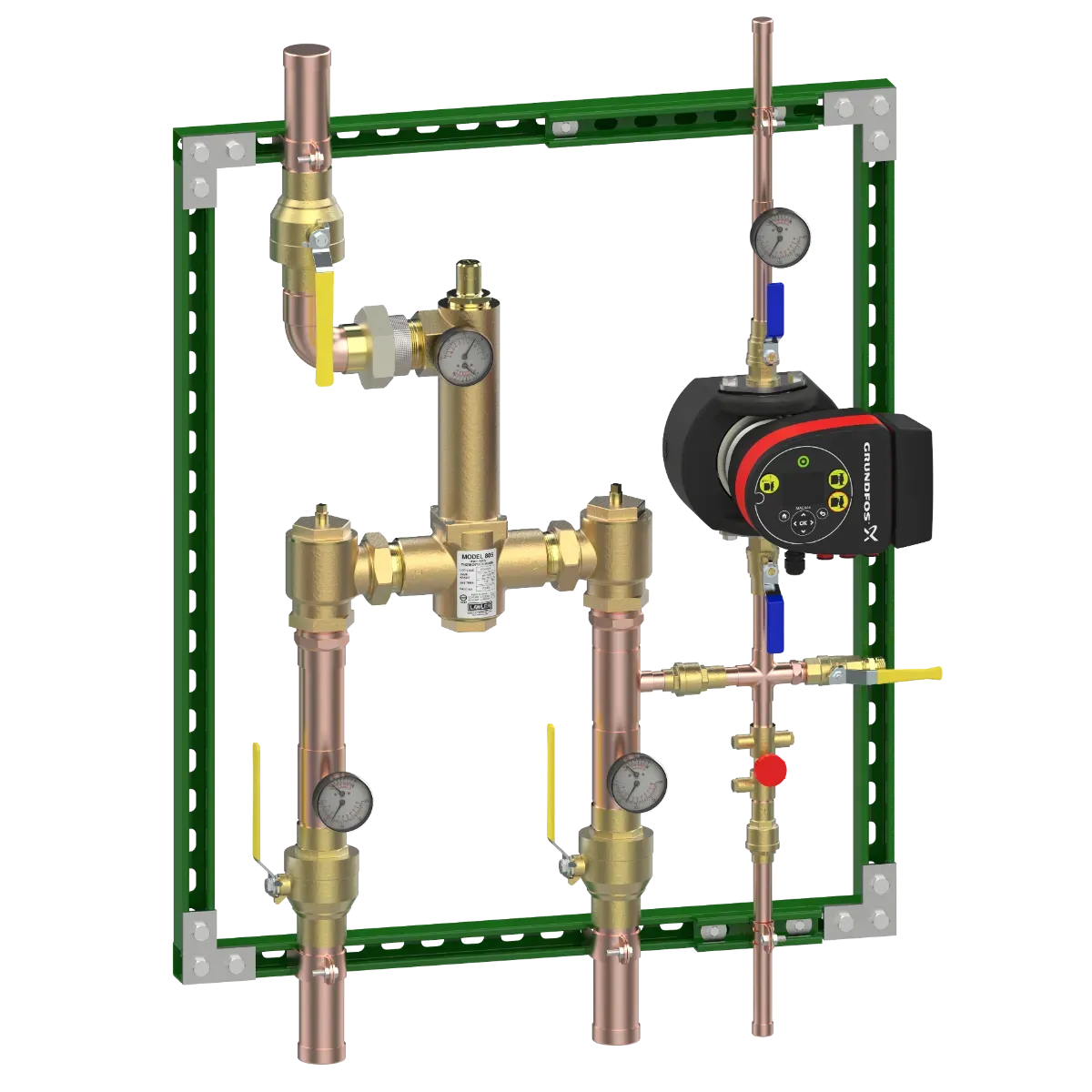

Lawler’s Mini Recirculation System is a turnkey unit that includes Lawler’s patented single valve high-low technology as well as integrated smart pump technology that helps improve balancing of the recirculation loop. The system also includes thermometers, ball valves, mounting strut and a test connection.
This complete solution is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.
Lawler’s NEW MINI Manifold Pre-Piped Recirculation Systems are offered in both low capacity and high capacity configurations.
Specifications:
| Series: 800 |
| Valve: 805 |
| Configuration: Mini Mixing System Standard |
| Application: Master Controller, Mixing System |
| Certification/s: ASSE 1017, CSA B125.3, Lead Free |
| Connection Type: Sweat |
| Inlet Connection Size: 2" |
| Outlet Connection Size: 2" |
| Min Flow: 5 GPM |
| Min Flow with Recirculation: 1/2 GPM" |
| Rated Flow at 10 PSI: 96 GPM" |
| Rated Flow at 45 PSI: 200 GPM" |
| Temperature Range: 110°F – 140°F, 70°F – 100°F, 90°F – 120°F |
| Part Number: 90050-00 |
