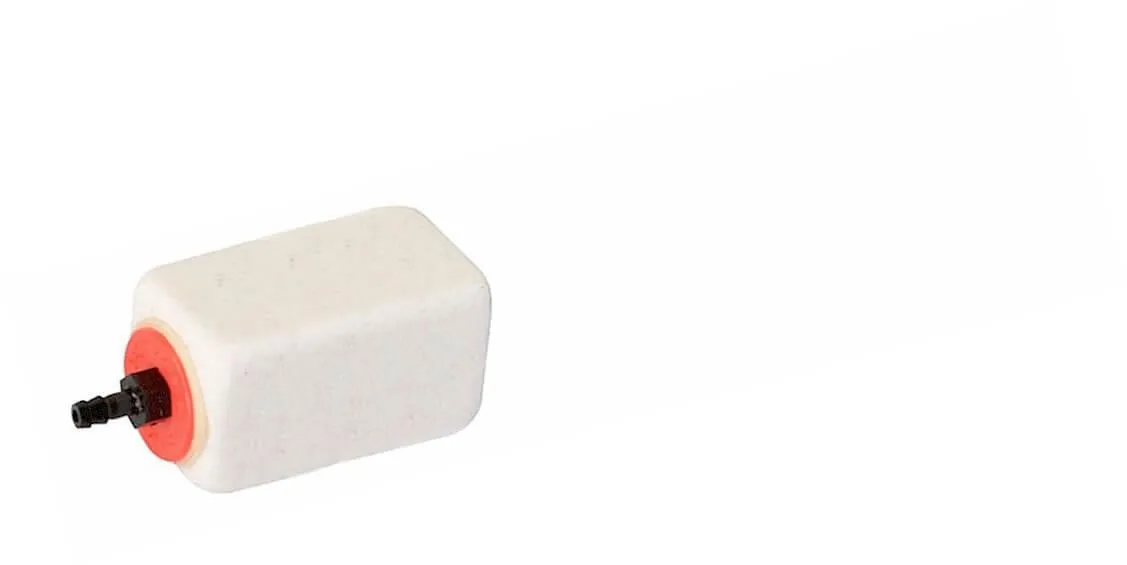

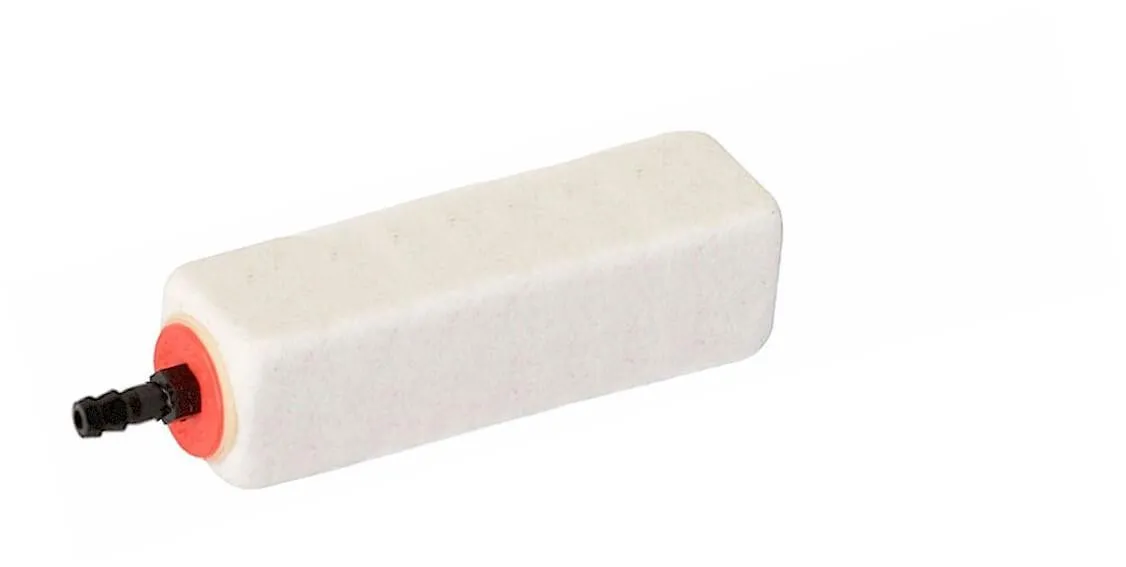

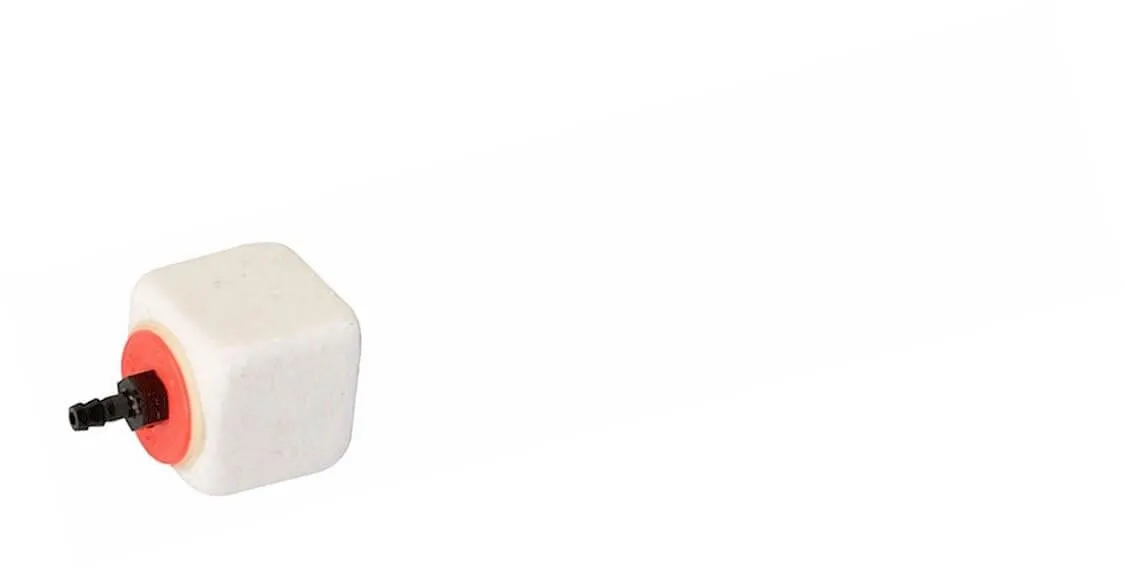

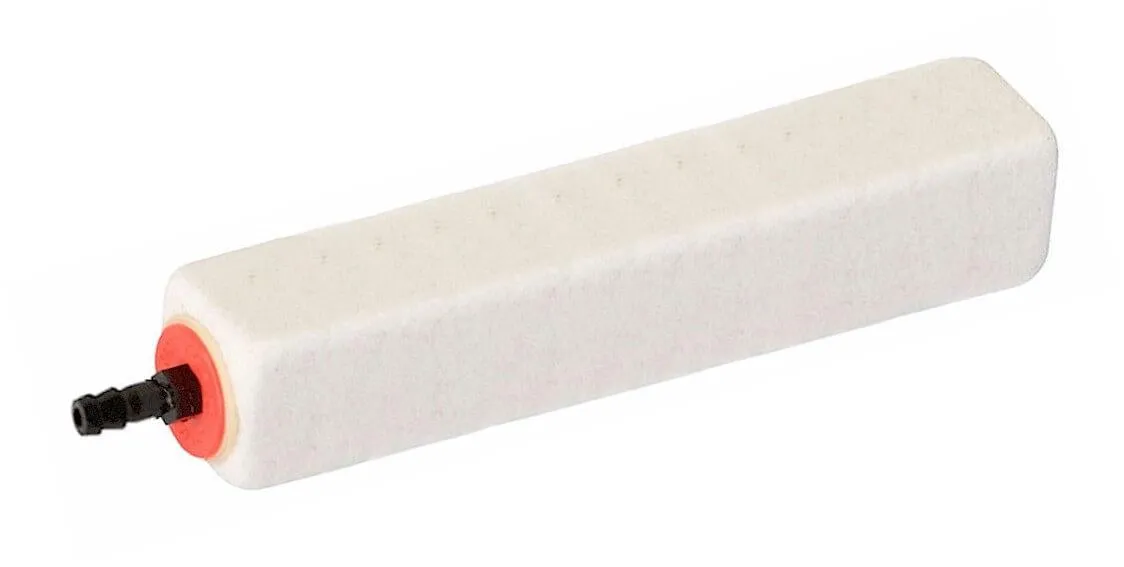

AES Air Diffusers - "Air Stone"
AES diffusers are high-quality ceramic-type air diffusers. They're machined from a solid block of glass-bonded silica. Because dust and dirt particles up to 30 microns in size will pass right through these diffusers, there's no need for expensive air filters. And with an air resistance of less than 0.25 psi, AES glassbonded diffusers are compatible with economical low-pressure blowers.
The AES diffusers will produce a uniform medium/fine bubble and are very resistant to clogging. And when cleaning does become necessary because of a buildup of calcium precipitate or bacteria, an acid bath restores them to like-new performance.
| Model | CFM | Width | Length | POF | Air Connection Type |
|---|---|---|---|---|---|
| AS4 | 0.25 | 1.5" | 1.5" | 7 lbs | 3/16" O.D. (4 mm), PE |
| AS8S | 0.35 | 1.5" | 3" | 10 lbs | 3/16" O.D. (4 mm), PE |
| AS15S | 0.50 | 1.5" | 6" | 14 lbs | 1/4" O.D. (6 mm), PE |
| AS23S | 0.75 | 1.5" | 9" | 20 lbs | 1/4" O.D. (6 mm), PE |
POF - Is the pounds of fish that should be able to be supported.
CFM - Used at this typical cubic feet per minute. Higher cfm will create larger bubbles.
PE - Is high density linear polyethylene.
Features:
- Body Material: 2,000°F Glass-Bonded Silica
- Maximum Pore Size: 140 Microns (.0055 Inches)
- Bubble Size: 1-3 Mm (.04-.15 Inches)
- Nominal Particle Retention: 50 Microns
- Service Life At Ph Below 8.0 is Unlimited
- Flexural Strength: 2,500 PSI
- Water pH in excess of 9.0 will shorten the diffuser life
- Self-weighting when used with typical tubing lengths
Diffuser Bumpers can also be used with the Air Stone -
